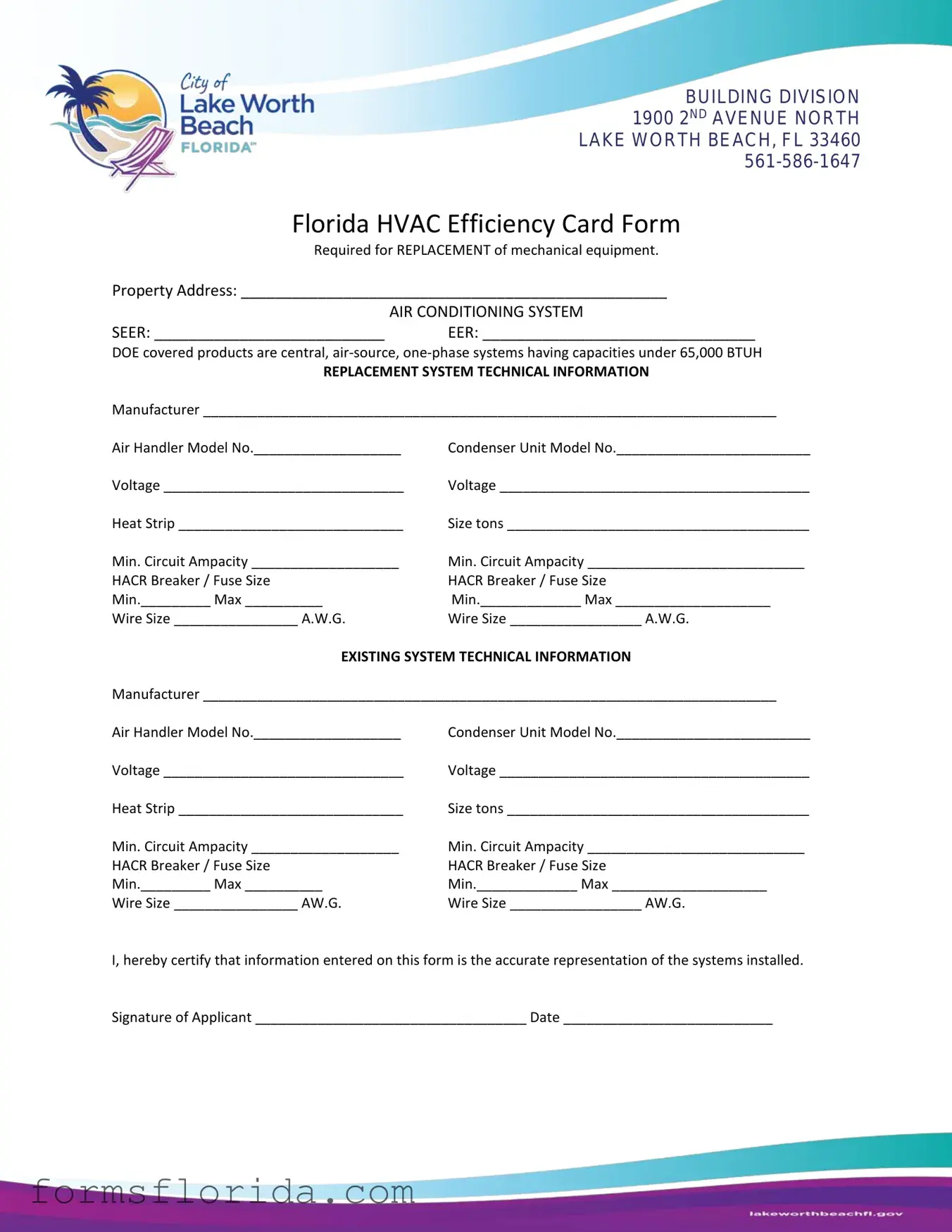

Fill in Your Florida Hvac Efficiency Card Form

Detailed Instructions for Writing Florida Hvac Efficiency Card

To complete the Florida HVAC Efficiency Card form, gather all necessary information about both the replacement and existing systems. Ensure you have the correct model numbers, specifications, and other relevant details ready. After filling out the form, submit two copies to the Building Division for approval.

1. Obtain the Florida HVAC Efficiency Card form.
2. Fill in the AIR CONDITIONING SYSTEM SEER and EER values.
3. Provide details for the REPLACEMENT SYSTEM TECHNICAL INFORMATION section:
   • Manufacturer
   • Air Handler Model Number
   • Condenser Unit Model Number
   • Voltage
   • Heat Strip
   • Size in tons
   • Min. Circuit Ampacity
   • HACR Breaker / Fuse Size (Min. and Max.)
   • Wire Size (A.W.G.)
4. If applicable, include the Evaporator Coil Unit Model Number for the replacement system.
5. Complete the EXISTING SYSTEM TECHNICAL INFORMATION section with similar details as above:
   • Manufacturer
   • Air Handler Model Number
   • Condenser Unit Model Number
   • Voltage
   • Heat Strip
   • Size in tons
   • Min. Circuit Ampacity
   • HACR Breaker / Fuse Size (Min. and Max.)
   • Wire Size (A.W.G.)
6. If applicable, provide the Evaporator Coil Unit Model Number for the existing system.
7. Sign and date the form in the designated area.
8. Make two copies of the completed form.
9. Submit the copies to the Building Division at the City of Lake Worth.

What is the Florida HVAC Efficiency Card Form?

The Florida HVAC Efficiency Card Form is a document required for the replacement of mechanical equipment in HVAC systems. This form ensures that the efficiency ratings of the new system meet the necessary standards and that all relevant technical information is documented. It must be posted at the job site and two copies are required for compliance.

Who needs to fill out this form?

This form must be completed by the contractor or technician responsible for installing the new HVAC system. It is essential for anyone replacing mechanical equipment to ensure compliance with local regulations and efficiency standards.

What information is required on the form?

The form requires detailed information about both the existing and replacement HVAC systems, including:

• Manufacturer details
• Model numbers for air handlers and condenser units
• System efficiency ratings (SEER and EER)
• Electrical specifications, including voltage and circuit ampacity
• HACR breaker or fuse sizes
• Wire sizes
• Additional details for evaporator coils, if applicable

Where should the form be posted?

The completed Florida HVAC Efficiency Card Form must be posted on the job site where the HVAC installation or replacement is taking place. This allows for easy access for inspections and ensures compliance with local building codes.

Is there a specific capacity requirement for the systems covered by this form?

Yes, the form specifically covers central, air-source, one-phase systems that have capacities under 65,000 BTUH. This specification is crucial for determining which systems require the completion of the form.

What happens if the form is not completed or posted?

If the form is not completed or posted at the job site, it may lead to compliance issues with local building codes. This could result in fines, delays in inspections, or even the inability to pass final inspections for the HVAC installation.

How can I ensure the information on the form is accurate?

To ensure accuracy, double-check all entries on the form against the specifications of the new HVAC equipment. It may be beneficial to consult with the manufacturer’s documentation or seek assistance from a qualified HVAC professional. The applicant must also certify the accuracy of the information by signing the form.

Filling out the Florida HVAC Efficiency Card form can seem straightforward, but many people make common mistakes that can lead to delays or issues. One frequent error is failing to provide the correct SEER and EER ratings for the air conditioning system. These ratings are crucial for compliance and must be filled out accurately. Leaving these fields blank or entering incorrect values can cause problems during inspections.

Another mistake involves the technical information for both the replacement and existing systems. Applicants often overlook details such as the Manufacturer name or the Model Numbers. Missing this information can create confusion and may result in the form being rejected. It’s important to double-check that all required fields are complete.

Some individuals forget to indicate the Voltage for both systems. This information is vital for ensuring that the electrical components match the specifications needed for safe operation. Neglecting to fill in the voltage can lead to compatibility issues down the line.

Additionally, the Min. Circuit Ampacity and HACR Breaker/Fuse Size sections are often filled out incorrectly. Applicants sometimes confuse the minimum and maximum values or leave them blank entirely. Providing accurate electrical specifications is essential for safety and compliance with local codes.

Another common oversight is the Wire Size section. People may enter the wrong American Wire Gauge (AWG) or forget to provide this information altogether. Incorrect wire sizing can lead to electrical failures, which can be costly and dangerous.

When it comes to the evaporator coil, applicants sometimes fail to provide the Evaporator Coil Unit Model Number. This is necessary if the air handler is equipped with one or more coils. Omitting this detail can delay the approval process and complicate the installation.

Finally, many forget to sign and date the form. The certification statement at the bottom is important, as it confirms that the information provided is accurate. Without a signature, the form may be considered incomplete.

By being aware of these common mistakes, applicants can ensure that their submissions are complete and accurate. Taking the time to carefully fill out the Florida HVAC Efficiency Card form can save time and avoid unnecessary complications.

The Florida HVAC Efficiency Card form is essential for anyone replacing mechanical equipment in the state. However, there are several other documents and forms that are often used in conjunction with this card to ensure compliance with local regulations and to provide a complete overview of the HVAC system being installed. Below is a list of these related documents, along with a brief description of each.

• Permit Application Form: This form is required to obtain the necessary permits for HVAC installation or replacement. It provides details about the work to be done and ensures that the project complies with local building codes.
• Installation Checklist: This document outlines the steps that must be followed during the installation process. It serves as a guide for contractors to ensure all necessary procedures are completed correctly.
• Manufacturer's Specifications: This includes detailed information from the manufacturer about the HVAC equipment being installed. It often covers installation guidelines, performance data, and warranty information.
• Energy Efficiency Rating (EER) Documentation: This document provides the energy efficiency ratings for the HVAC system being installed. It is important for ensuring that the system meets energy efficiency standards set by local regulations.
• Load Calculation Report: A load calculation report determines the heating and cooling requirements for a building. This ensures that the installed HVAC system is appropriately sized for the space it will serve.
• Inspection Report: After installation, an inspection report may be generated to confirm that the HVAC system has been installed correctly and meets all safety and efficiency standards.
• Service Agreement: This document outlines the terms of service for maintenance and repairs on the HVAC system. It helps ensure the system remains operational and efficient over time.
• Warranty Registration Form: This form is often required to register the HVAC system for warranty coverage. It provides proof of purchase and details about the installation.
• Occupancy Permit: Once installation is complete, an occupancy permit may be required to confirm that the building is safe for use. This document is often issued after a final inspection of the HVAC system and other components of the building.

Understanding these additional forms and documents can help streamline the HVAC installation process and ensure compliance with local regulations. Proper documentation not only facilitates smoother operations but also protects the rights and responsibilities of all parties involved.

The Florida HVAC Efficiency Card form is similar to the Energy Star Certification. Both documents aim to ensure that HVAC systems meet specific efficiency standards. The Energy Star Certification verifies that a product, including HVAC systems, has been tested and meets energy efficiency guidelines set by the U.S. Environmental Protection Agency. Like the HVAC Efficiency Card, it requires information about the system's performance and efficiency ratings, making it easier for consumers to choose energy-efficient options.

Another document that shares similarities is the HVAC Installation Checklist. This checklist is used to ensure that all necessary steps have been followed during the installation of HVAC systems. It includes details about equipment specifications, installation practices, and safety measures. Just like the Florida HVAC Efficiency Card, the checklist helps maintain quality and compliance with local codes, ensuring that the system operates efficiently and safely.

The Building Permit Application is also comparable. This document is required for any construction or renovation project, including HVAC system replacements. It collects information about the project, including system specifications and compliance with building codes. Similar to the HVAC Efficiency Card, the Building Permit Application ensures that installations meet local regulations and standards for safety and efficiency.

The Manufacturer’s Installation Instructions serve a similar purpose as the HVAC Efficiency Card. These instructions provide detailed guidelines on how to properly install HVAC equipment. They include specifications for electrical connections, ductwork, and system performance. Both documents emphasize the importance of following manufacturer guidelines to ensure optimal system efficiency and longevity.

The Certificate of Compliance is another document that resembles the HVAC Efficiency Card. This certificate is issued to confirm that a system has been installed according to local codes and regulations. It serves as proof that the installation meets required standards, similar to how the HVAC Efficiency Card documents the efficiency and specifications of the installed system.

The Energy Efficiency Ratio (EER) Certification is also similar. This certification provides a rating that indicates the efficiency of an HVAC system. It is essential for consumers looking to understand how much energy a system will use. Like the HVAC Efficiency Card, the EER Certification helps consumers make informed decisions about energy consumption and potential cost savings over time.

Finally, the Air Conditioning and Refrigeration Institute (ARI) Certification is comparable. This certification confirms that HVAC equipment has been tested for performance and efficiency. It provides consumers with assurance that the products meet industry standards. Both the ARI Certification and the HVAC Efficiency Card serve to guide consumers in selecting reliable and efficient HVAC systems for their needs.

When filling out the Florida HVAC Efficiency Card form, it's important to be careful and precise. Here are some tips to help you navigate the process:

• Do: Double-check all information for accuracy before submitting.
• Do: Provide two copies of the completed form as required.
• Do: Ensure that all technical specifications are filled out completely.
• Do: Sign and date the form to certify the information is correct.

• Don't: Leave any fields blank; incomplete forms may be rejected.
• Don't: Use abbreviations or unclear terms that could confuse reviewers.
• Don't: Forget to include information about the existing system if applicable.
• Don't: Submit the form without confirming that all details match the installed systems.

• Misconception 1: The Florida HVAC Efficiency Card form is only needed for new installations.

This form is specifically required for the replacement of mechanical equipment. It is not limited to new systems, but rather applies when existing systems are being replaced.

• Misconception 2: Only one copy of the form is required.

In fact, two copies of the Florida HVAC Efficiency Card form must be submitted. Both copies are necessary to ensure compliance and proper record-keeping.

• Misconception 3: The form is only concerned with the air conditioning system's efficiency ratings.

While the form does require details about the system's SEER and EER ratings, it also collects extensive technical information about the existing and replacement systems, including model numbers, voltage, and circuit ampacity.

• Misconception 4: The form does not need to be displayed at the job site.

It is mandatory for the information on the form to be posted at the job site. This ensures that all parties involved are aware of the specifications and compliance requirements during the installation process.

Filling out the Florida HVAC Efficiency Card form is an essential step for anyone replacing mechanical equipment in the state. Here are some key takeaways to keep in mind:

• Purpose: This form is required specifically for the replacement of mechanical equipment, ensuring compliance with local regulations.
• Job Site Posting: It is mandatory to post this information at the job site, making it accessible for inspections.
• Two Copies: You must provide two copies of the completed form to meet the submission requirements.
• SEER and EER: You will need to fill in the Seasonal Energy Efficiency Ratio (SEER) and Energy Efficiency Ratio (EER) for the new air conditioning system.
• System Specifications: Detailed technical information about both the replacement and existing systems is required, including manufacturer details and model numbers.
• Electrical Information: Voltage specifications and circuit ampacity must be accurately documented to ensure safe installation.
• Heat Strip Size: Indicate the size of the heat strip in tons to provide clarity on the system's heating capabilities.
• HACR Breaker/Fuse: Specify the minimum and maximum sizes of the HACR breaker or fuse for both systems to prevent electrical issues.
• Wire Size: Document the appropriate wire sizes in American Wire Gauge (AWG) to comply with electrical standards.
• Certification: The applicant must sign and date the form, certifying that all information provided is accurate, which is crucial for accountability.

By keeping these points in mind, individuals can navigate the process of filling out the Florida HVAC Efficiency Card form more effectively, ensuring compliance and promoting energy efficiency in their installations.
